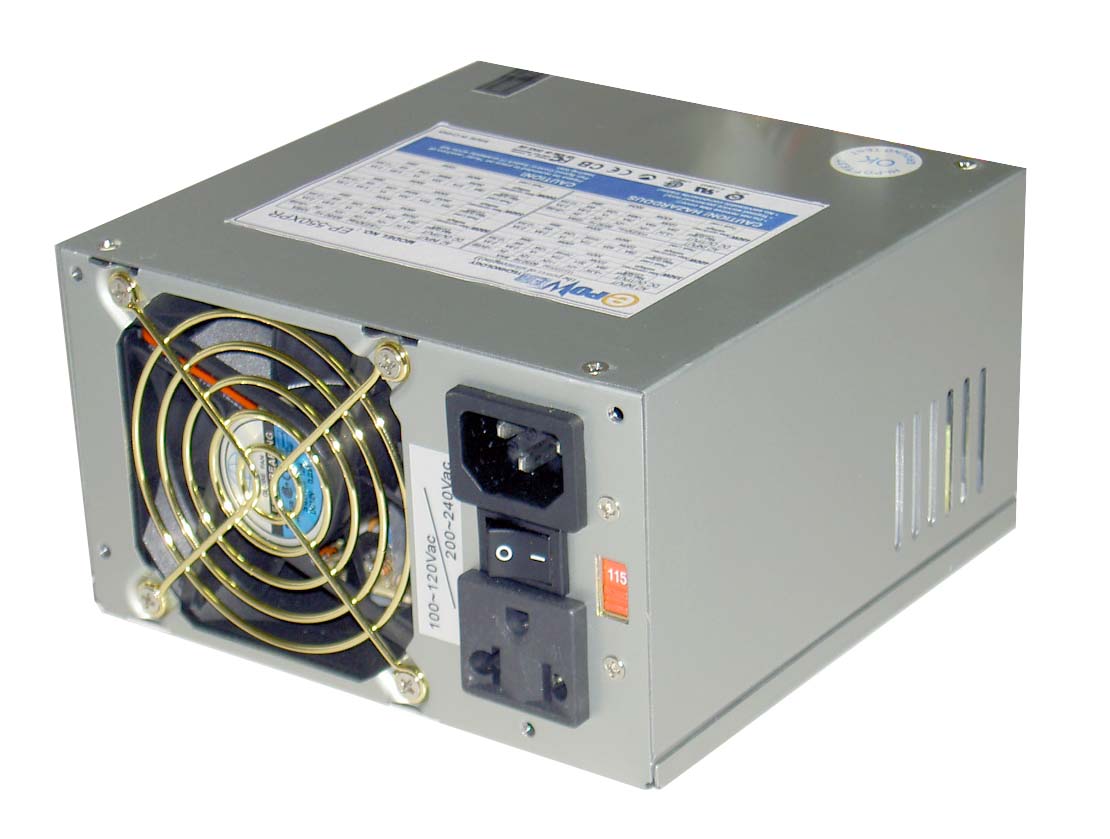

Model: EP-550XPR |
Features
|
Chassis |
Gray Iron |
|
Number of Fans |
1X 80mm |
|
PFC |
No
|
|
M/B Connecter |
20Pin (with 24pin converter)
|
|
SATA connector
|
2 |
|

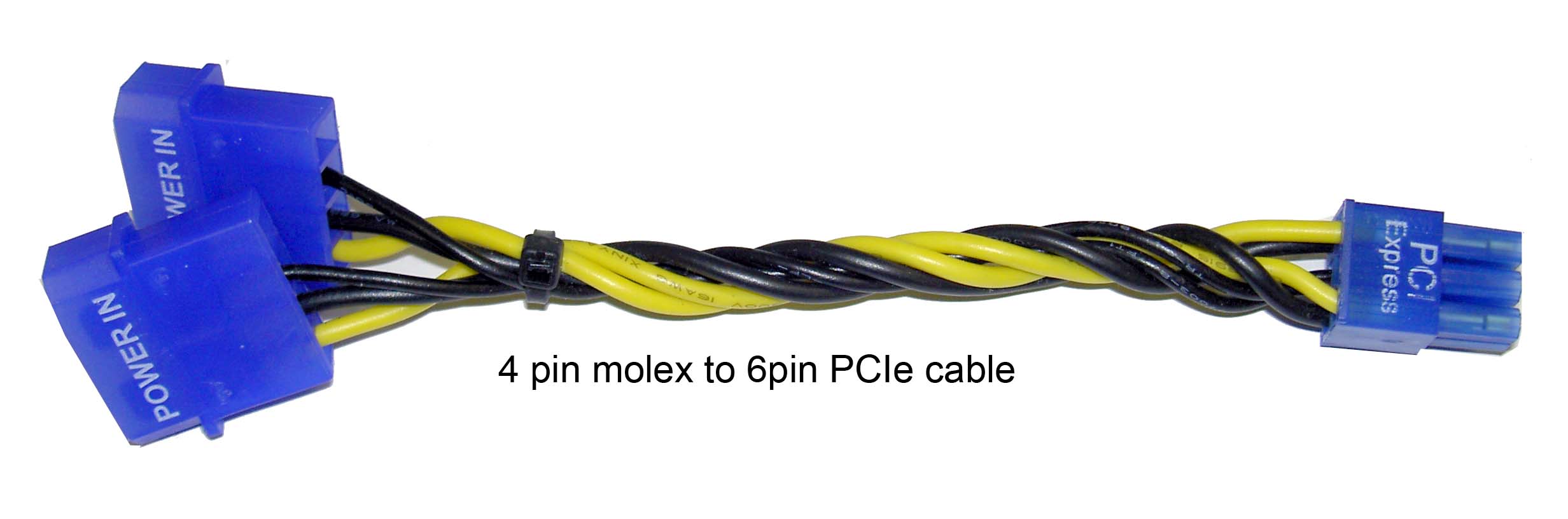

PCIe connector
6 pin |
1 (converter) |
|
HDD Molex
|
6 |
|
FDD |
2 |
|
AUX connector |
1 |
|
Protection |
OVP, OCP and short
Circuit Protection |
|
Certification |
UL, CE, CB, FCC, |
|
Model Name
|
EP-550XPR |
|
Dimension
|
150mm X 85mm X 145mm (W X H X L) |
|
5" 7/8 X 3" 3/8 X 5" 11/16 (W X
H X L) |
|
Weight |
4Lb |
|
MB Connecter |
20 Pin ( with 24Pin
converter)
|
|
AC Input |
100-120Vac
200-240Vac |
|
Frequency (Hz)
|
60/50Hz |
|
DC Output |
+3.3V |
+5V |
+12V |
-12V |
-5V |
+5VSB |
|
Max Output Current |
28A |
54A |
30A |
1A |
0.8A |
2.5A |
|
Combined
Wattage |
260W |
360W |
12W |
4W |
12.5W |
|
530W |
26W |
|
Total Wattage |
550W |
|
 |
|
¡@ |
|
|
|
|
¡@ |
|
|
