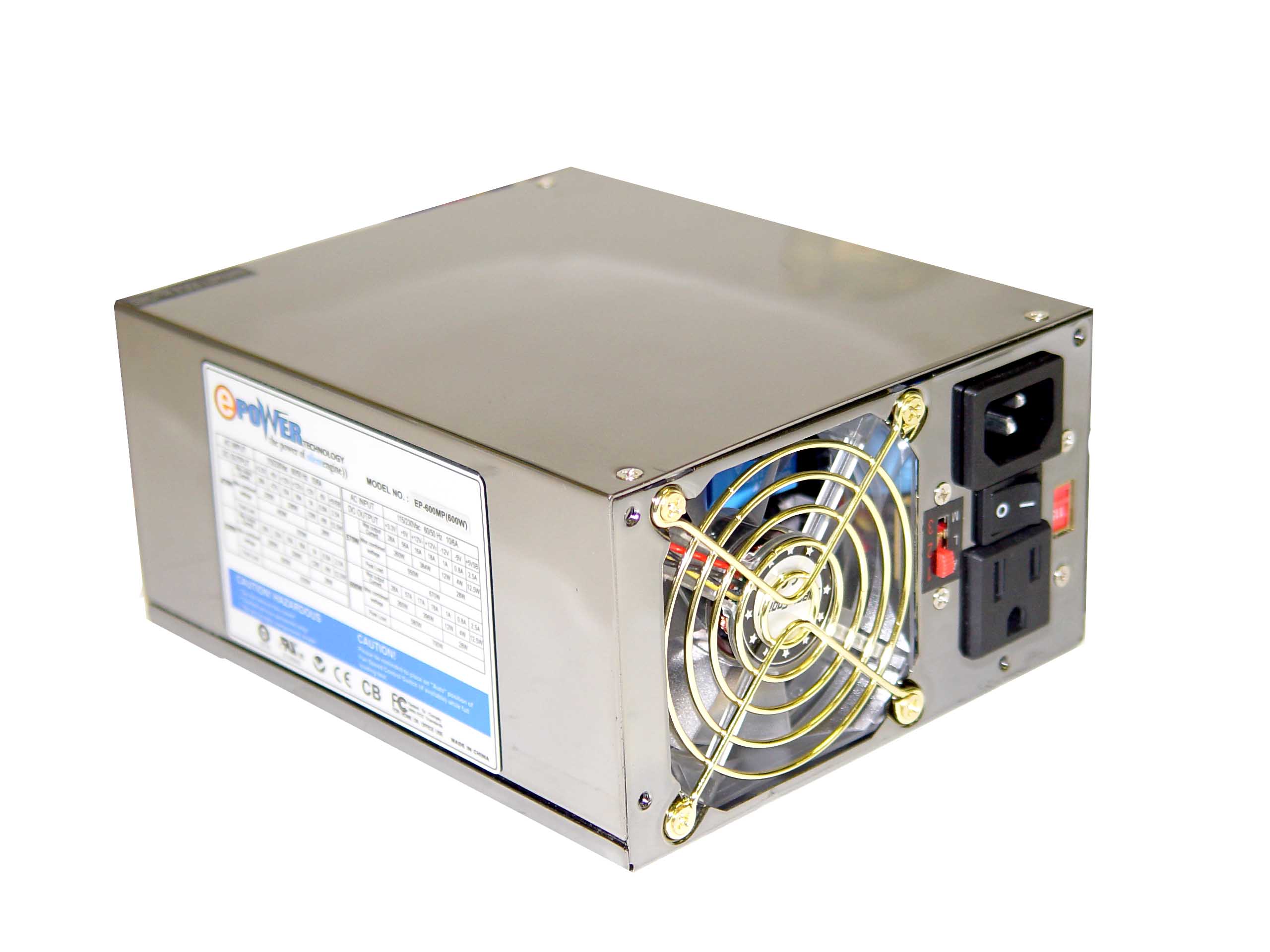

Xscale EP-600MP

Unbeatable Power! Xscale 600Watt
The 600watt ATX power source practically screams with energy. This mighty 600Watt ATX unit can run virtually on any motherboard in the market.  With all this consistent, reliable power, you can feel free to build the PC or server system of your dreams without worrying about lacking the energy to run all your components and peripherals.

Lots of Really Cool Features!
The Xscale 600Watt comes with high-performance, low-noise, system optimizing features. Besides reducing radiation admittance,   the titanium reflective sided, mirror finish gives this power supply a really cool look that¡¦s perfect for LAN parties and other occasions where you want to show off and strut your stuff. Supports Intel
Pentium 4, server, dual Xeon and AMD. athlon boards.

Fan Speed Monitor Lead





PCI express VGA Lead

AC and Fan Speed Control

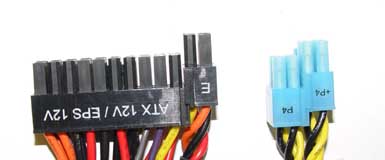

20+4 Sliding Main Connector

¡@

       "Included are two EMI shielded 4pin Molex cables specific for graphic cards and hard drives. The use of these two EMI shielded cables greatly helps maintain stability to these vital components." by motherboards.org (see all reviews)

Features
Chassis Glossy Titanium Reflective
Number of Fans 2 Fans
Fan Speed Control Yes
Fan Sensor Lead Yes
M/B Connecter 20+4 Sliding Connector (Patented)
AGP Pro 6 Pin Connector Yes
SATA Connector 4 build in
VGA Power Lead Technology 2
6 Pin PCI express VGA Card Lead Yes
Peripherals Device AC Control Yes
Top Silent Technology Noise Control
Over Voltage Protection Yes
Over Current Protection Yes
Short Circuit Protection Yes
Certification UL, CE, CB, FCC
Technical Specification
AC Input

                           115-230VAC

Current

                            10/6A

Frequency

                         60/50Hz

DC Output +3.3V +5V +12V1 +12V2 -12V -5V +5VSB
Max Output Current 28A 56A 16A 18A 1.0A 0.8A 2.5A
Combined Wattage

260W

   384W 12W 4W 12.5W
Max Combined Wattage                  580W 28W

                           700W

Dimensions                              (W x H x D)

                               6" x 3.5" x6.25"

Weight

                            8 lbs

¡@
