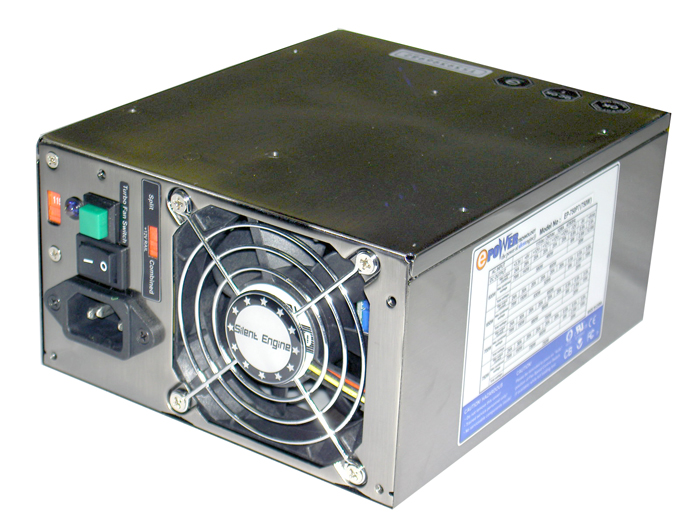

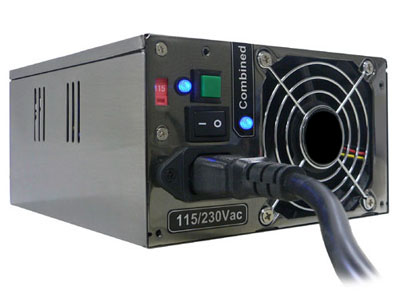

EP-750P3A
|
¡@ |
|
Features |
|
Sliding Socket
|
|
 |
| Patented ATX
20+4 slide-in socket for PCIe, Intel Pentium 4,
multi-processor server, AMD server and DUAL CORE main
boards power need. |
|
|
|
Turbo Fan Switch
|
|
 |
| Turbo Fan button allow
users to speed up PSU fan when needed |
|
|
|
Enhanced
VGA Power Lead
|
|
 |
| Patented EMI filter added to
enhance video performance by stabilized the in out put
current to video cards |
|
|
|
+12V auto
Combine
|
|
 |
| Patented feature
that combine all +12V rails when need to provide max
output |
|
|
6+2 PCIexpress
connector |
|
 |
| Patent pending 6+2 PCIe pin. This innovative design
prepare for the next generation PCIexpress Video cards.
Providing up to 300W power per rail. (available in Mid
March 2007) |
|
|
| Chassis |
Black Titanium
|
| Number
of Fans |
2 x 80mm |
| M/B
Connecter |
20
pins + 4 pins ATX12V |
|
SATA Connector |
8 Total (4 on each rails) |
| Molex
Connector |
6 Total (3 on each rails) |
|
PCIe 6pin |
4 Total (4 independent rails)
|
|
EPS 8pin |
1 |
|
EPS +12V (2 by 2pin) |
1 |
|
Case Fan Speed control |
3 |
|
Active PFC |
Yes |
| Over
Voltage Protection |
Yes |
| Over
Current Protection |
Yes |
| Short
Circuit Protection |
Yes |
| Certification |
UL, CE, CB, FCC
|
|
Technical Specification |
| AC
Input |
100-120Vac/200-240Vac |
| Current |
10/6A |
| Frequency |
60/50Hz |
| DC
Output |
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
-12V |
-5V |
+5VSB |
| Max
Output Current |
24A |
30A |
20A |
20A |
20A |
20A |
0.5A |
0.5A |
3.0A |
| Combined
Wattage |
79W |
150W |
600W |
6W |
2.5W |
15W |
|
730W |
20W |
|
Total
Wattage |
750W |
|
Dimensions
|
6"x 3.5"x
8" (W x H
x D) |
| Weight |
7 lbs
|
|
|
