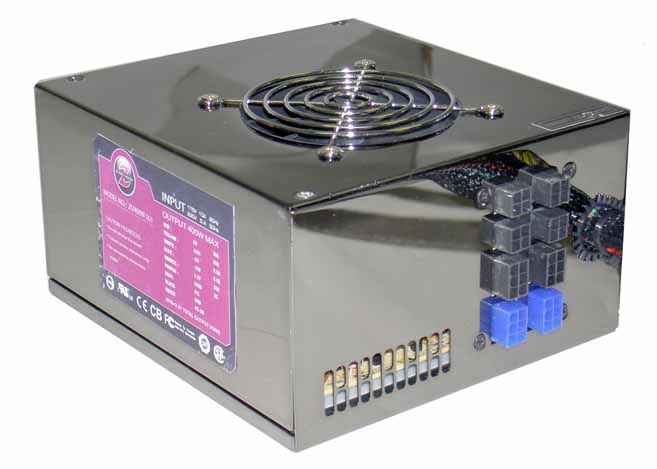

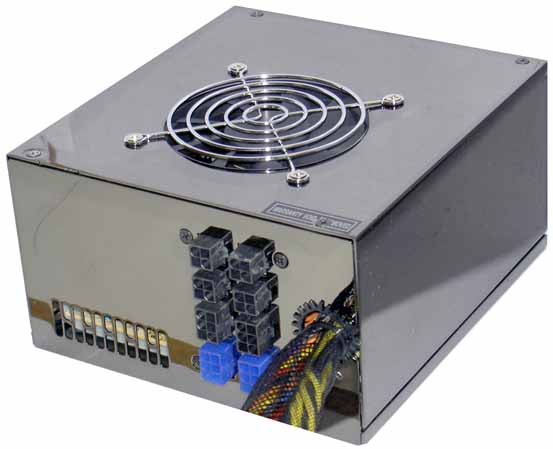

Model: ZU-550EZ-1

Innovative modular design two 80mm silent fan located top and back  creating the most aerodynamically efficient cooling! The bottom fan drives heat away from the CPU. Extreme-reliable, long-lifetime, and compatible with Intel Pentium and AMD processors. Low ripple/noise ensures stable system performance.

Features :
- Max Output: 550W

- ATX12V Version 2.0 / EPS12V
- Black Nickel Coating Chassis
- 2 x 80mm Fan (Top & Rear)

- Turbo Fan Switch (fan runs at full speed when pressed)
- Connectors:

   - 20+4Pin & EPS12V 4+4Pin Slide-In Motherboard Connector
   - 2 x 6pin PCI-Express Connector

   - 2 Serial ATA

   - 6 Molex for Peripherals

   - 2 Floppy Drive connctor
- Protection: OCP, OVP, SCP
- Safety Approvals: UL, CE, FCC, TUV
- Dimensions: 5.8" x 3.4" x 6.25" (W x H x D)
- Package: Retail
- Shipping Weight: 5lbs

@

Max Output:

@

+3.3V@30A,

+5V@50A,

+12V1@20A,

+12V2@20A,
