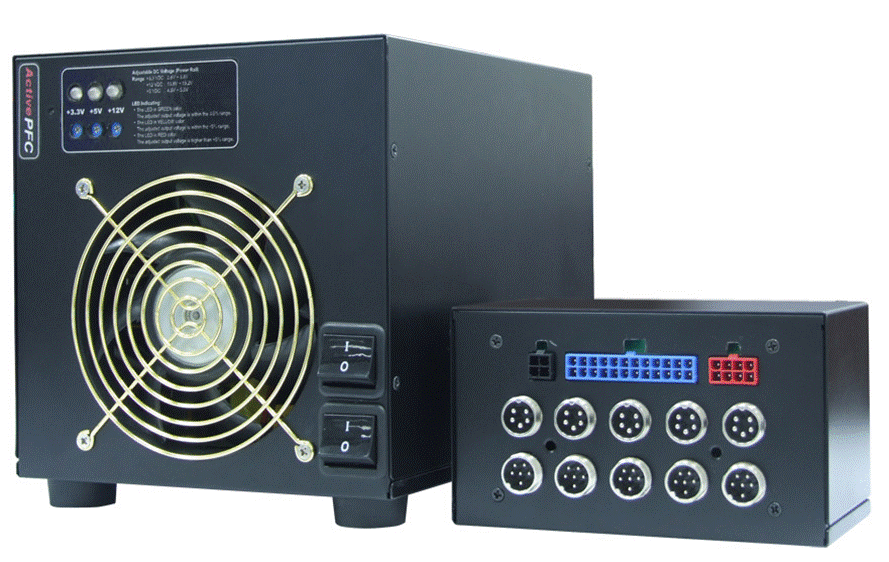

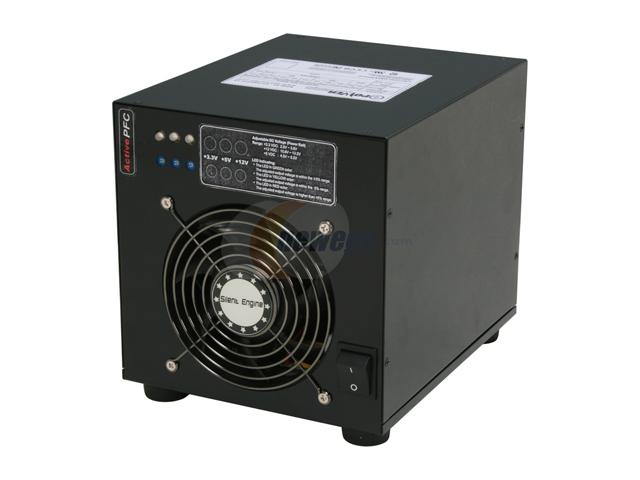

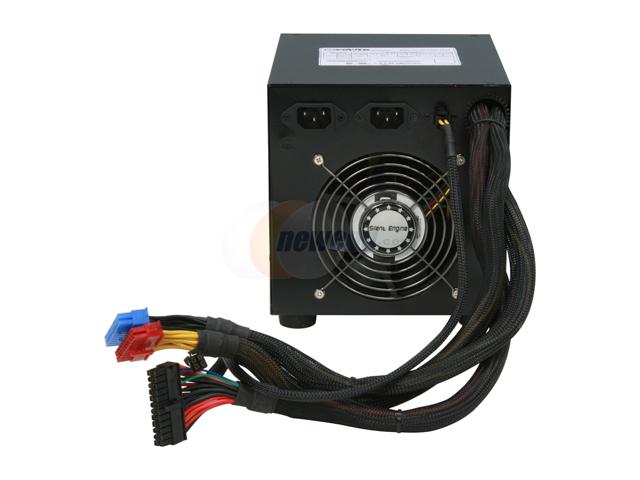

Model:EP-2000P10-T3

Featuring the latest switching power technologies with highly-efficient power converting, Think outside of the box, E Power presents the king of power supply, the 2000W power supply.

This Power Supply can draw high power from your home power circuit.
user need to hook up the two A/C inputs from separate
circuit breakers.

Features:

@

Specifications:

Chassis

Black

Number of Fans

2x120mm

PFC

Active PFC

M/B Connecter

20 pins + 4 pins  ATX

EPS  12V 8pin (4x2) connector

 1

EPS  12V 4pin (2x2) connector

 1

SATA connector

24

PCIe connector (6+2) Pin

3

PCIe connector 6 pin

2

HDD Molex connector

6

FDD connector

2

Dimension main box 7"X7"X7 3/4" (WxHXL)
Dimension connector box 5 7/8"  X 3 1/8" X 3 5/8" (LxWxH)
Shipping Weight 20lb

Protection

OVP, OCP and short Circuit Protection

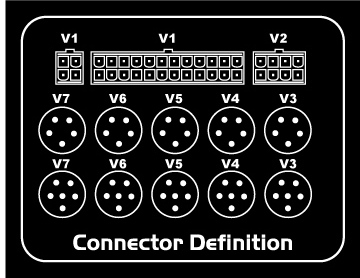

Rail definition on connector box

Power Spec

@

LED indication on adjustable rail.


@


@

@

@
@
Download wire diagram
Download spec sheet

@
