Thunder Series

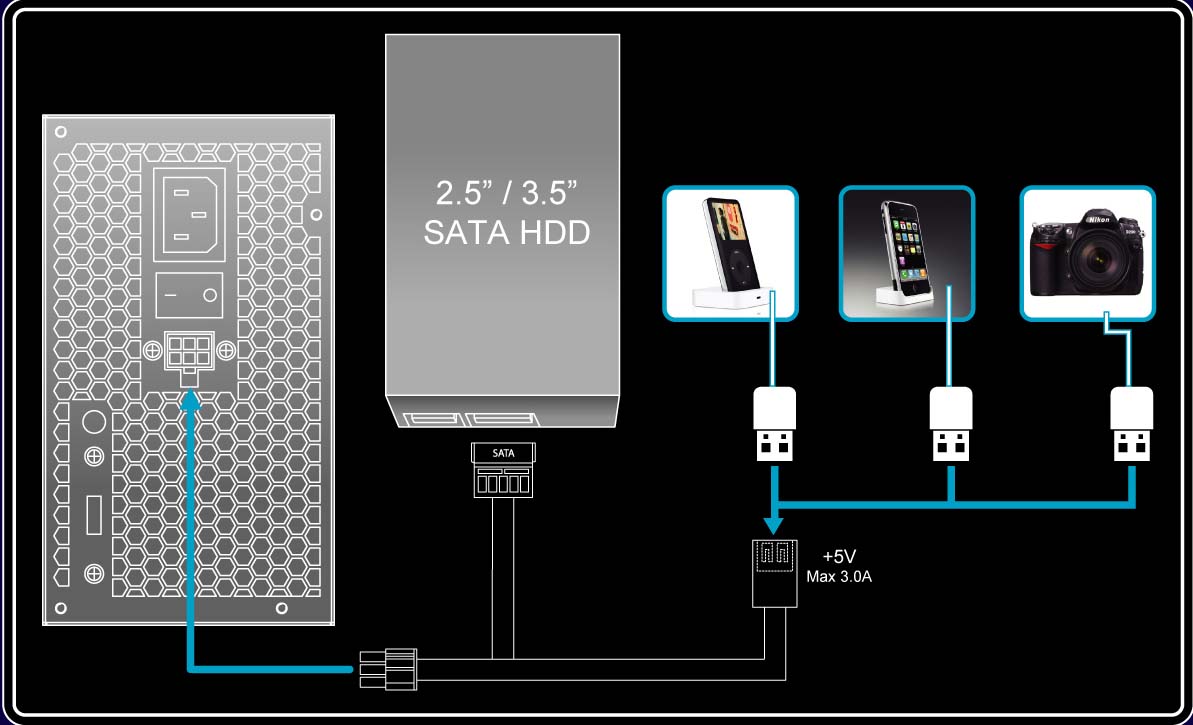

Featuring the latest power supply technology with user convenience in mind. E Power Thunder series redefine a modem PC power supply. It's not only a power supply for PC, but also a charger for USB devices and SATA power source for external SATA hard drives. We call it a  3 in 1 power supply.

Features:

@

Specifications:

Chassis

Titanium Black

Number of Fans

1x 120mm (Blue LED)

Active PFC

TD1 models only

4 Independent +12V rails

TD1 models only

M/B Connecter

20 pins + 4 pins  ATX

EPS  12V 8pin (4x2) connector

 1

SATA connector

4

PCIe connector (6+2) Pin

1

PCIe connector 6 pin

1

HDD Molex connector

6

FDD connector

2

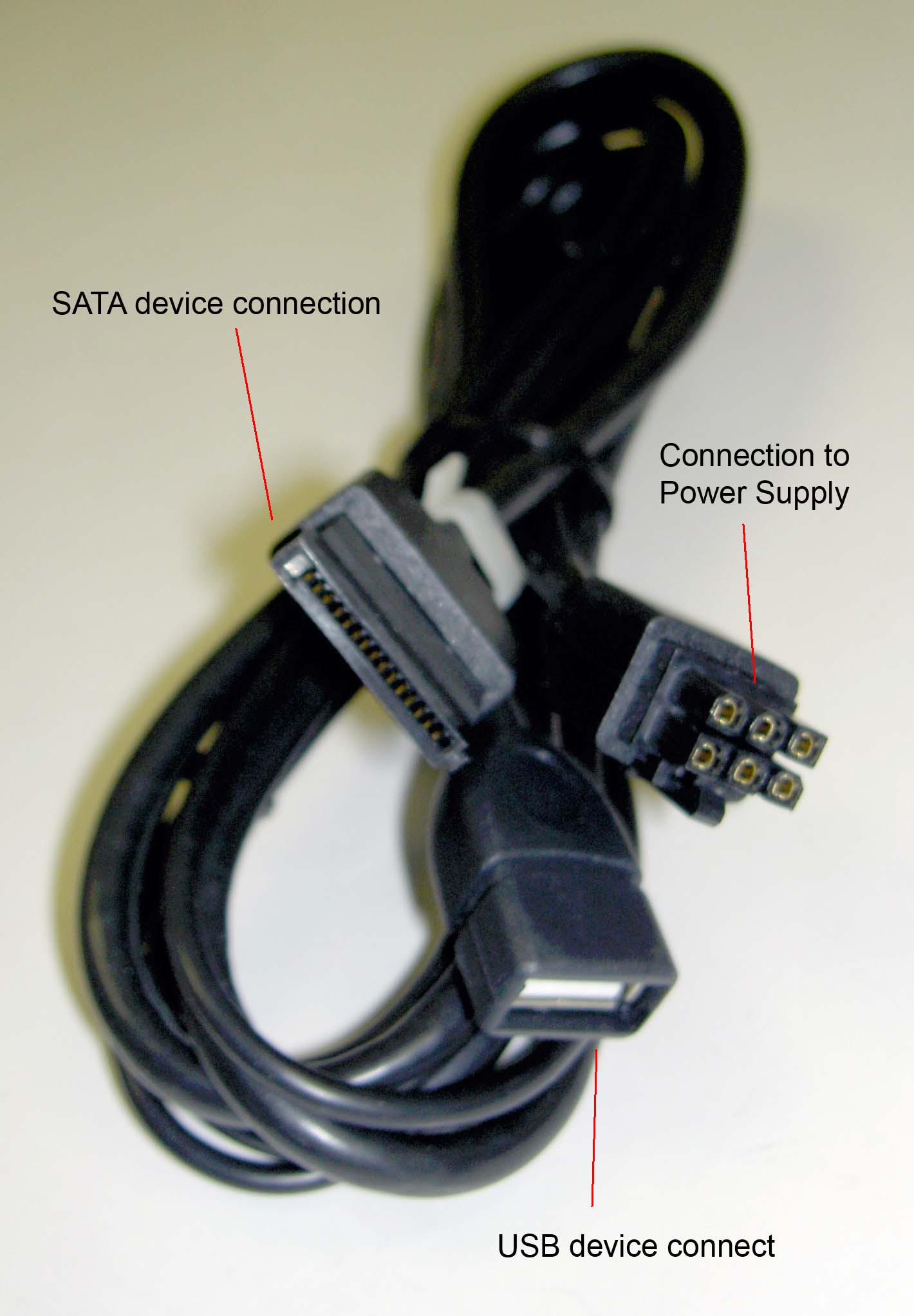

External USB charger cable

1

Dimension main box @

150mm X 85mm X 160mm (WxHxL)

5" 7/8 X 3 5/8" x 6"1/4 (WxHxL)

Shipping Weight 6lb

Protection

OVP, OCP and short Circuit Protection

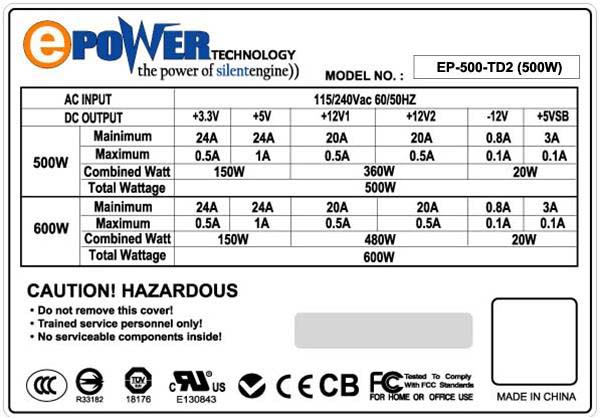

Model EP-500-TD2

Model EP-550-TD1

Model EP-600-TD2

Model EP-650-TD1

@

@

@


@


@

@

@
@
@
Download manual


@
