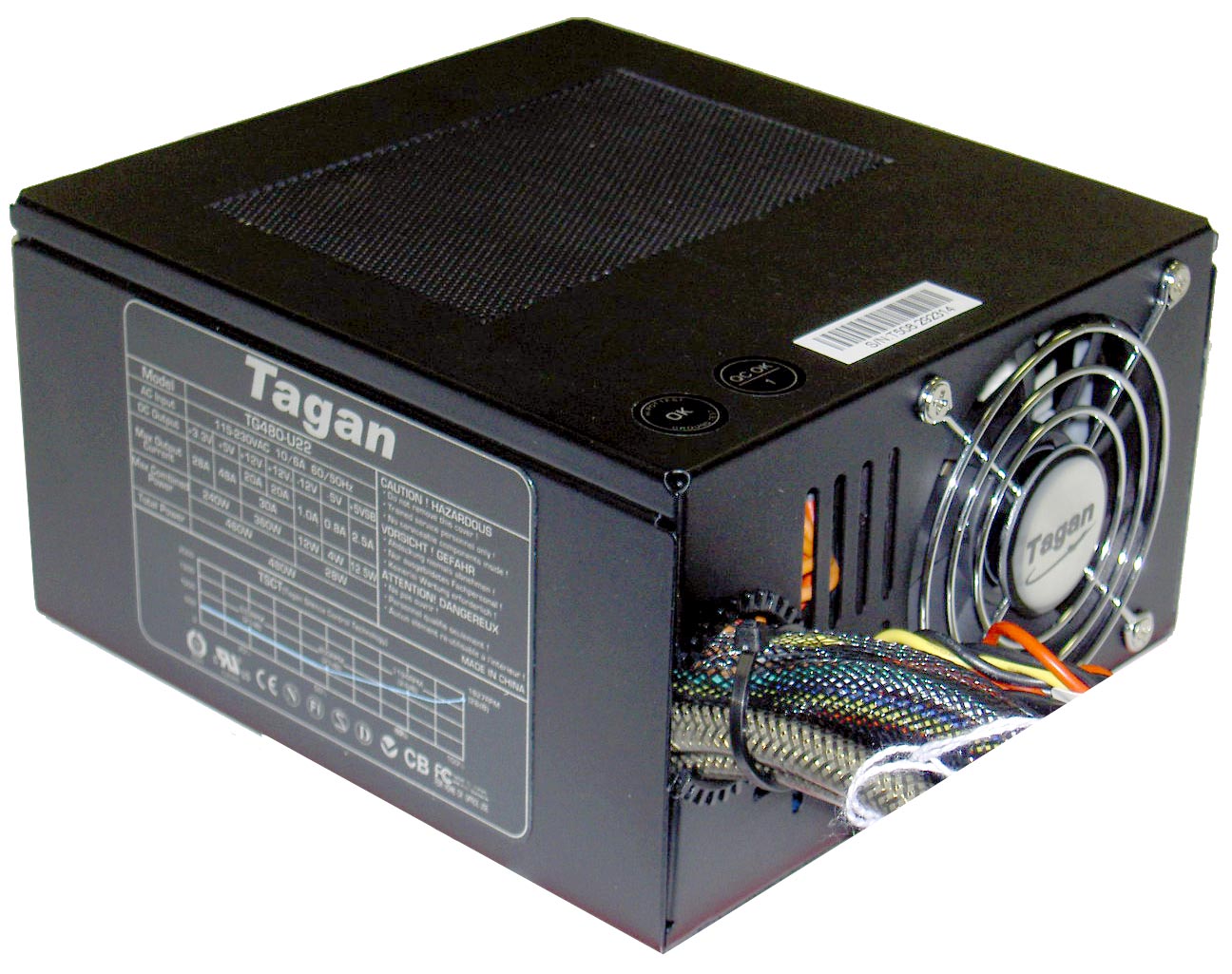

TG-480-U22





Click to download product flyer

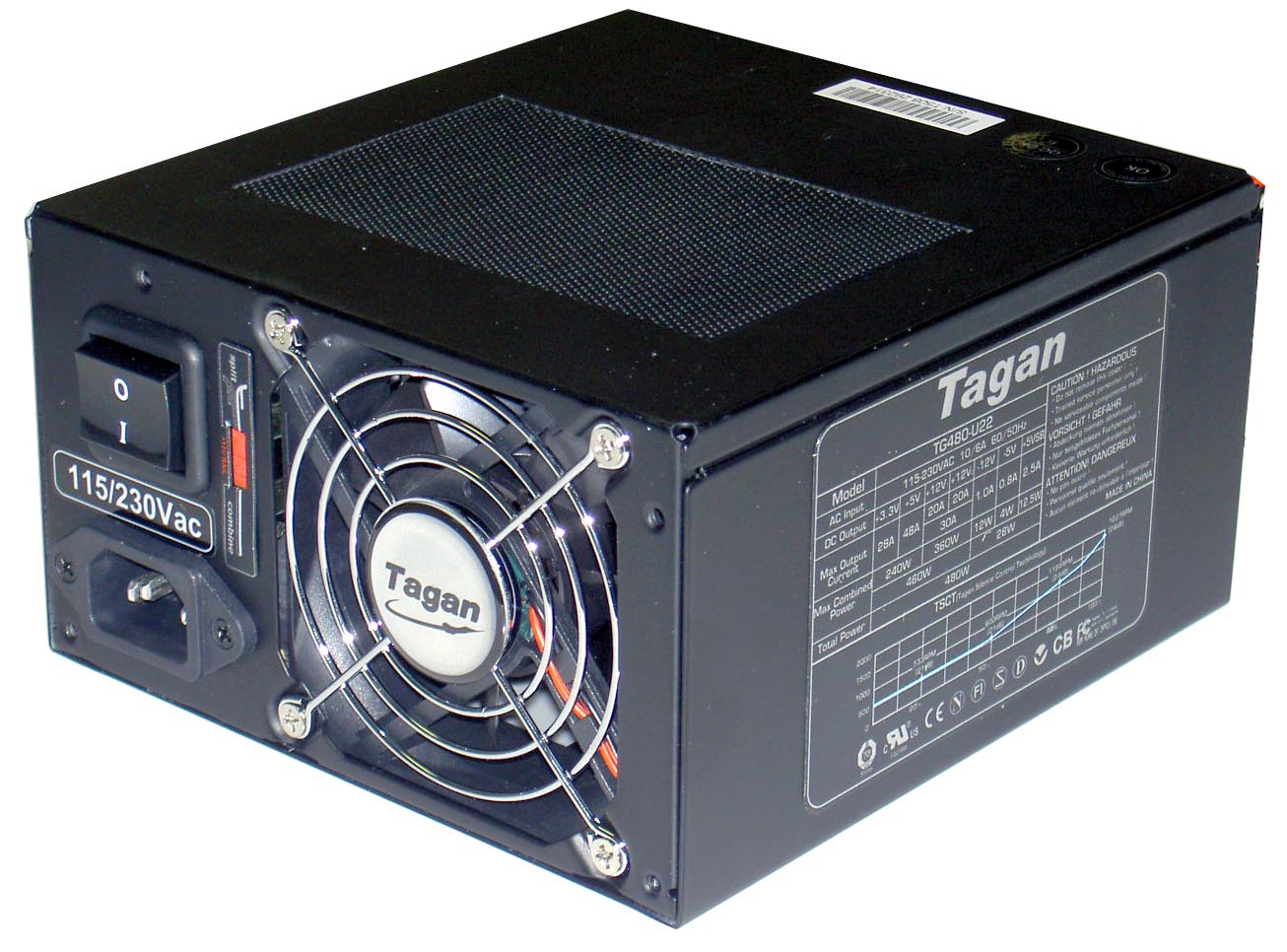

       This new generation power supply combines the technology  all in one for the full compatibility of old and new main boards and components. The TG-480-U22 provides the innovative transformable main board connectors for universal use. The powerful U22 also comes with a manual switch for 12V combine and split use, this patented design allow users adjust the voltage output for 12V rail, the combine V12 rail fits the ATX 12V 1.3 standard and can provide up to 30A current output. On the other hand, the split 12V can provide 20A for both the 12V1 and 12V2 rail for ATX12V 2.X  standard. Along with grounding wire protection,  over current protection, over voltage protection, over loading protection and Tagan silent control technology the TG-480-U22 is the best pick for high end gaming and performance PC.

Review
...featuring the same high build quality, stable power lines.....March 2005
Features

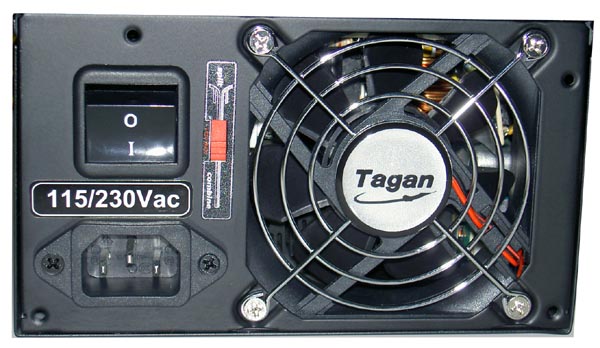

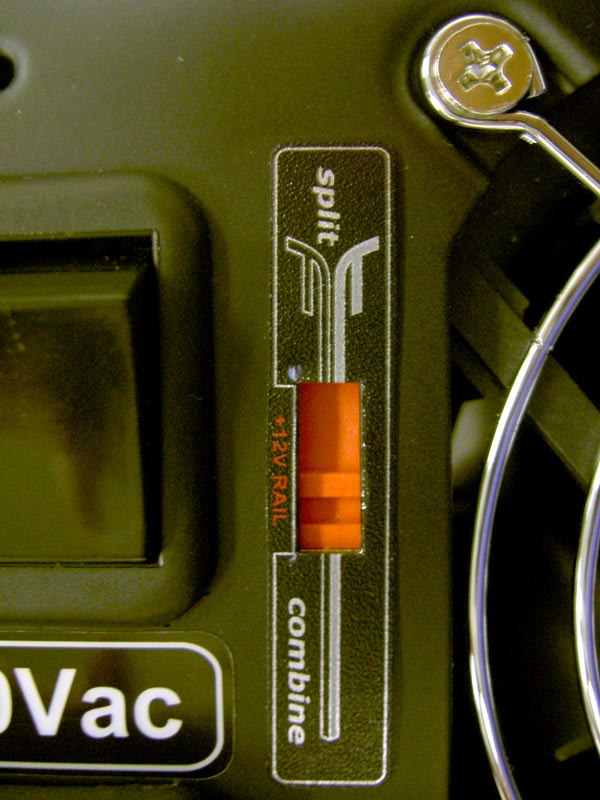

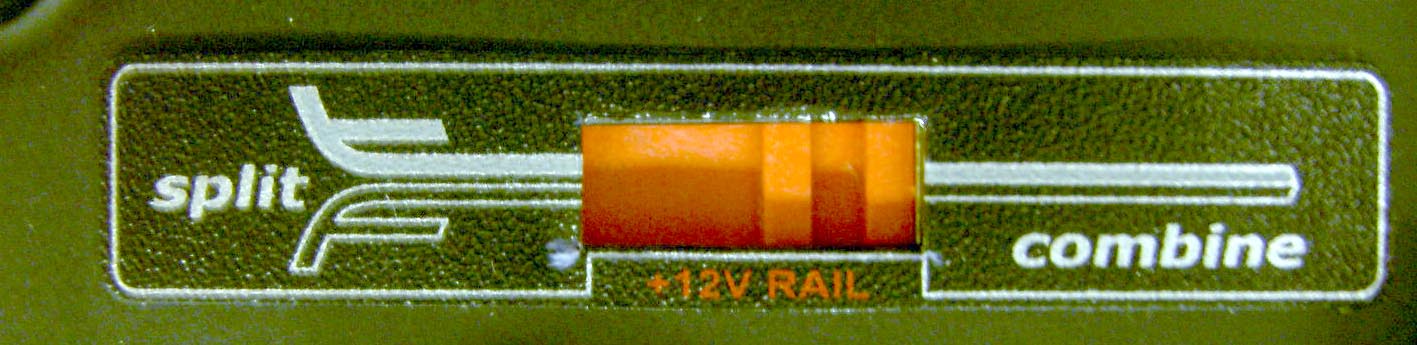

12V V1 and V2 split , combine switch

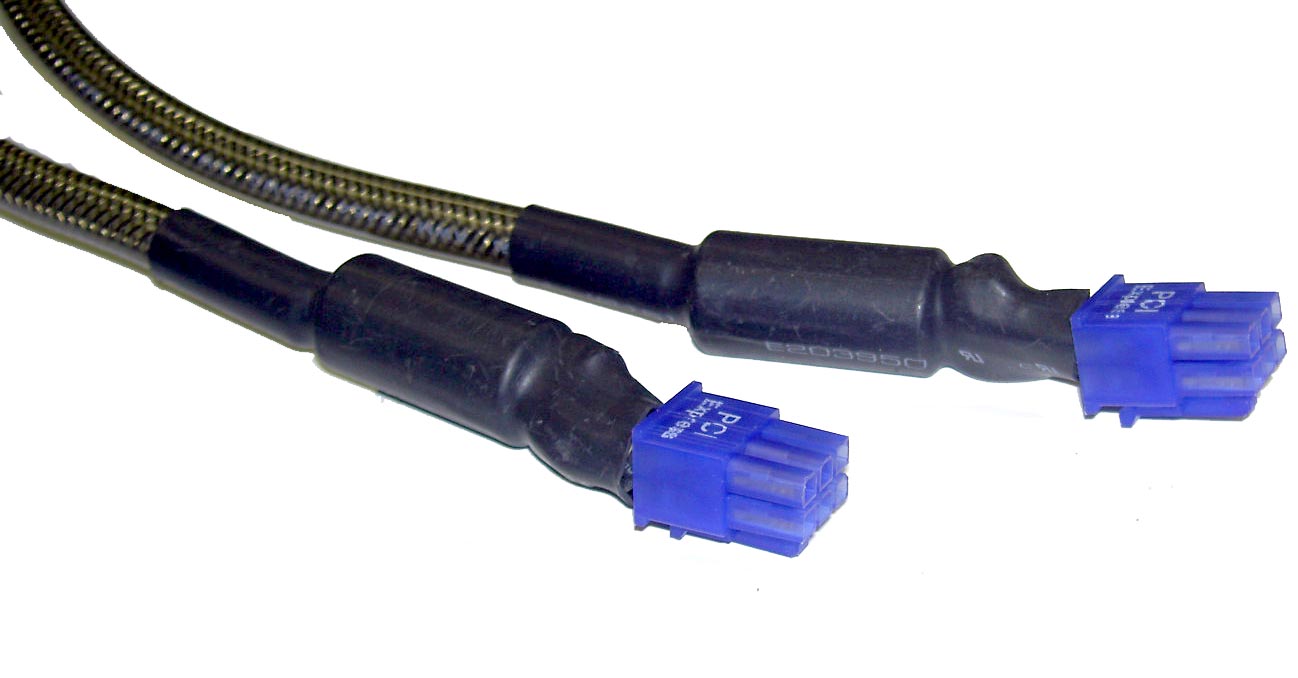

2 EMI filter added PCI express VGA card power lead for SLI video functions
Compatible with P4, AMD, Dual Xeon EPS 12V boards
4 Serial ATA lead
Tagan Silent Control Technology (TSCT)  22dBA at 60%% load
Special Grounding Wire

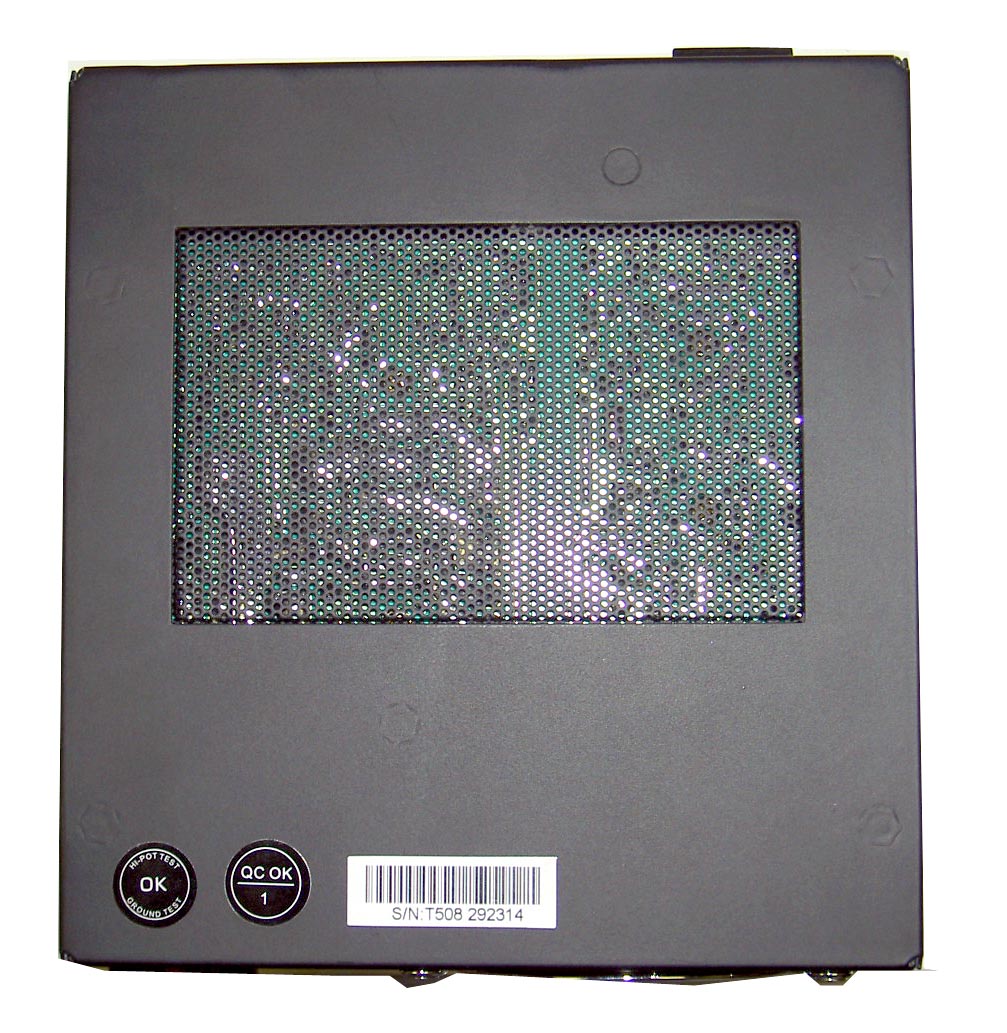

Metal net open chassis for extra cooling
Push & Pull Dual Fan Design for High Thermal Solution
Combine 12V/30A provide power for more peripheral devices
Short Circuit Protection, Short Circuit Protection
Over Voltage Protection, Over Current Protection
UL, CE, CB, FCC  certified
100% HI-POT tested

Split
Model   TG-480-U22 (ATX12V Version 2.01)
AC Input   115-230Vac
Current (AMP)    10/6A
Frequency (Hz)   60/50Hz
DC Output

 +3.3V

+5V +12V1 +12V2 -12V -5V +5VSB
Max Output Current   28A 48A 20A 20A 1.0A 0.8A 2.5A
30A
Combined Wattage   240W 360W 12W 4W 12.5W

 460W

 28W
Total Wattage

480W

Combine
Model   TG-480-U22 (ATX12V Version 1.3)
AC Input   115-230Vac
Current (AMP)    10/6A
Frequency (Hz)   60/50Hz
DC Output

 +3.3V

+5V +12V -12V -5V +5VSB
Max Output Current   28A 48A  30A 1.0A 0.8A 2.5A
Combined Wattage   240W 360W 12W 4W 12.5W

 460W

 28W
Total Wattage

480W
